Suoyi Yttria‑Stabilized Zirconia (YSZ) Powder: Key Properties for High‑Performance Advanced Ceramics
2026-09-17
Suoyi Yttria‑Stabilized Zirconia (YSZ) Powder: Key Properties for High‑Performance Advanced Ceramics
Yttria‑Stabilized Zirconia, commonly known as YSZ powder, has become one of the most versatile raw materials across the advanced ceramics industry. By doping zirconia oxide with yttria as a stabilizer, this specialty ceramic powder eliminates destructive phase transformation during heating and cooling cycles, delivering outstanding mechanical strength, fracture toughness, thermal stability and chemical resistance. Manufacturers rely on high‑quality YSZ powder to produce durable, high‑performance ceramic parts for dental restoration, solid oxide fuel cells, thermal barrier coatings, precision structural components and additive manufacturing. Selecting YSZ powder with matched particle size, yttria content, purity and sintering activity is critical to achieve consistent final‑part performance.
Core Properties of YSZ Powder
Phase Stability
Pure zirconia suffers from severe volume change during monoclinic‑tetragonal phase shift, which leads to cracking and component failure. Yttria doping stabilizes tetragonal or cubic zirconia crystal structures over a wide temperature range. Different grades including 3YSZ, 5YSZ and 8YSZ offer distinct phase structures tailored for different end‑use scenarios.
Mechanical Performance
3 mol% YSZ powder delivers exceptional fracture toughness and bending strength thanks to transformation‑toughening mechanism. Components sintered from fine‑grade 3YSZ powder resist chipping, impact and mechanical wear, making it the preferred option for load‑bearing structural ceramics and dental frameworks.
Thermal & Ionic Conductivity
Higher yttria content such as 8YSZ features excellent oxygen‑ion conductivity at elevated temperatures. This property makes 8YSZ powder the standard electrolyte material for solid oxide fuel cells. Meanwhile, YSZ possesses low thermal conductivity, which supports its wide adoption for thermal spray barrier coatings against high‑temperature oxidation.
Chemical & Corrosion Resistance
YSZ powder‑based ceramics show strong inertness against acids, alkalis and molten chemicals. They maintain stable performance under harsh corrosive environments, with minimal degradation in long‑term service conditions.
Sintering Behavior
Particle morphology, particle‑size distribution and powder purity directly determine sintering activity. Well‑processed YSZ powder can reach high density at reasonable sintering temperature, reducing energy cost for mass ceramic production. Fine‑sized YSZ powder enables fine‑grained microstructure for precision miniaturized ceramic components.
Major Application Areas
Dental Ceramics: 3Y and 5Y YSZ powder is the core raw material for dental zirconia blanks, crowns, bridges and implant abutments, balancing mechanical strength and biocompatibility.
Solid Oxide Fuel Cells (SOFC): 8YSZ powder serves as electrolyte material for high‑temperature fuel cell stacks.
Thermal Barrier Coatings: YSZ feedstock powder for plasma spray protects gas‑turbine parts from extreme heat.

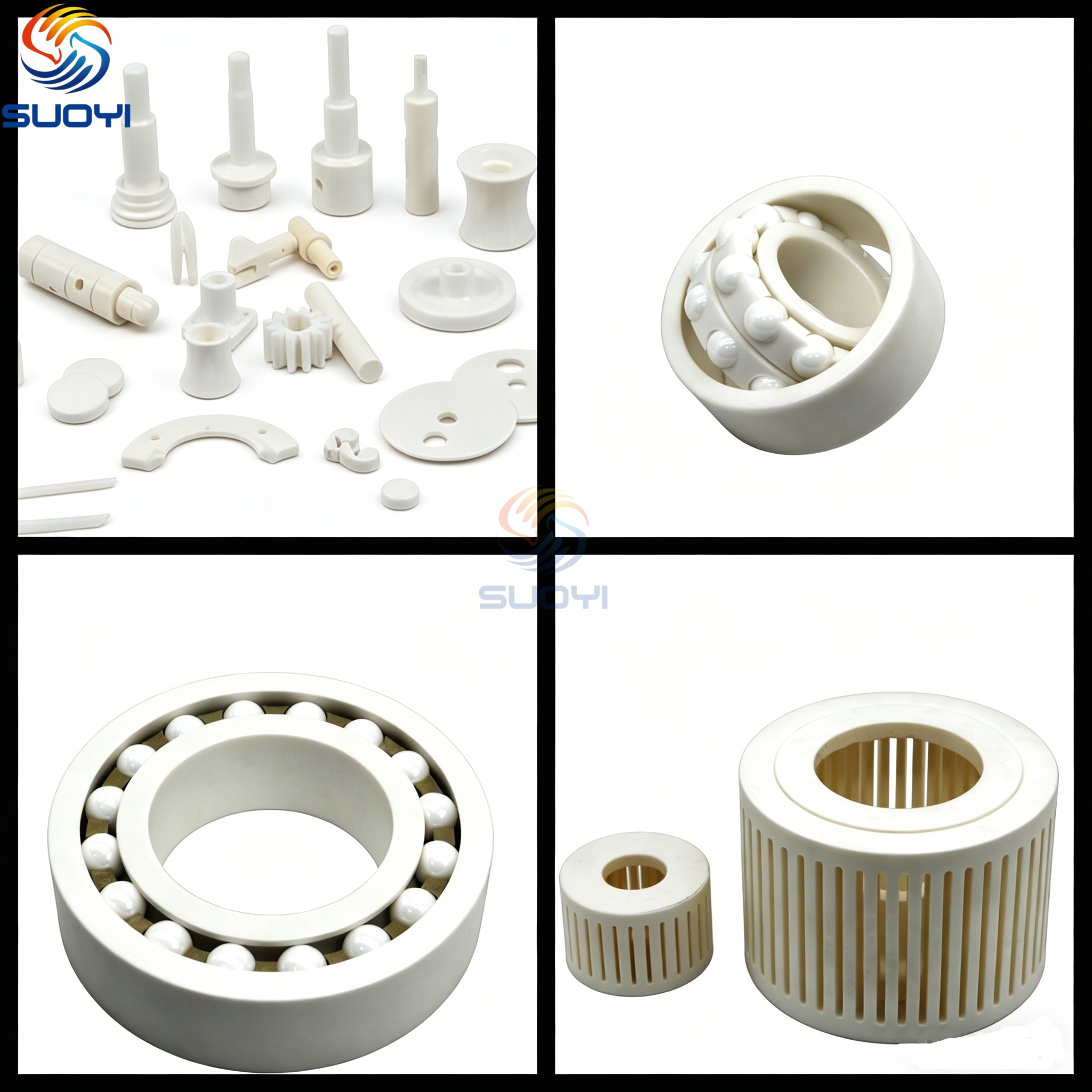

Structural Precision Ceramics: Wear‑resistant tools, ceramic shafts, cutting inserts and mechanical sealing parts.
Additive Manufacturing: Fine YSZ powder for ceramic 3D printing to produce complex‑geometry advanced ceramic parts.

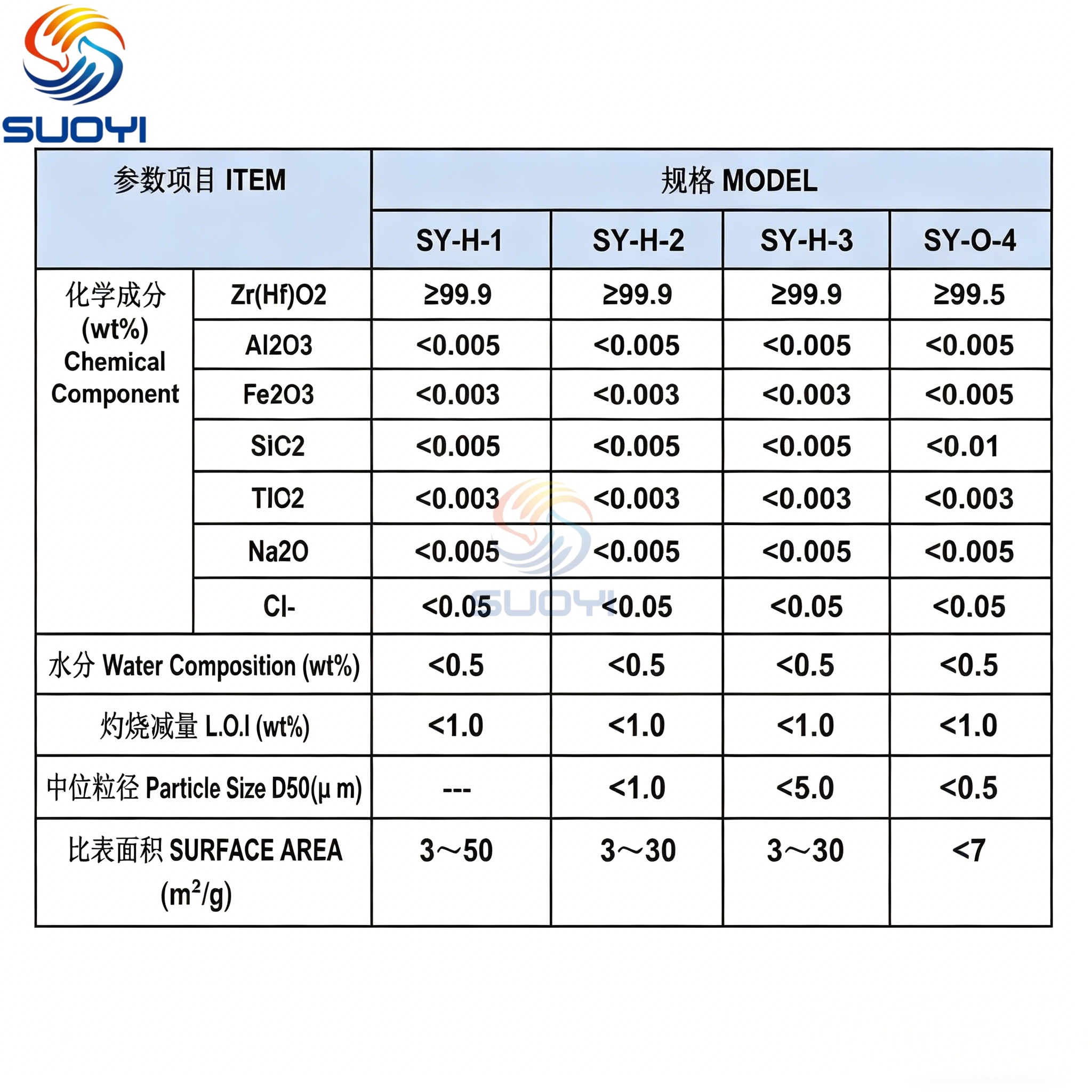

Key Factors When Sourcing YSZ Powder
Yttria molar percentage (3Y /5Y /8Y grade selection)
Powder purity and impurity levels
Particle size, D50 and specific surface area
Flowability and agglomeration status
Sintering activity and batch‑to‑batch consistency
Consistent powder quality avoids defects like low density, cracking and unstable mechanical properties in finished ceramic goods.
Conclusion
Thanks to its unique combination of phase stability, high toughness, ionic conductivity and chemical inertness, Yttria‑Stabilized Zirconia (YSZ) powder remains irreplaceable for modern high‑performance advanced ceramics. Understanding how powder specifications influence finished‑component performance helps engineers and procurement teams pick the correct YSZ grade to maximize product reliability for their projects.
