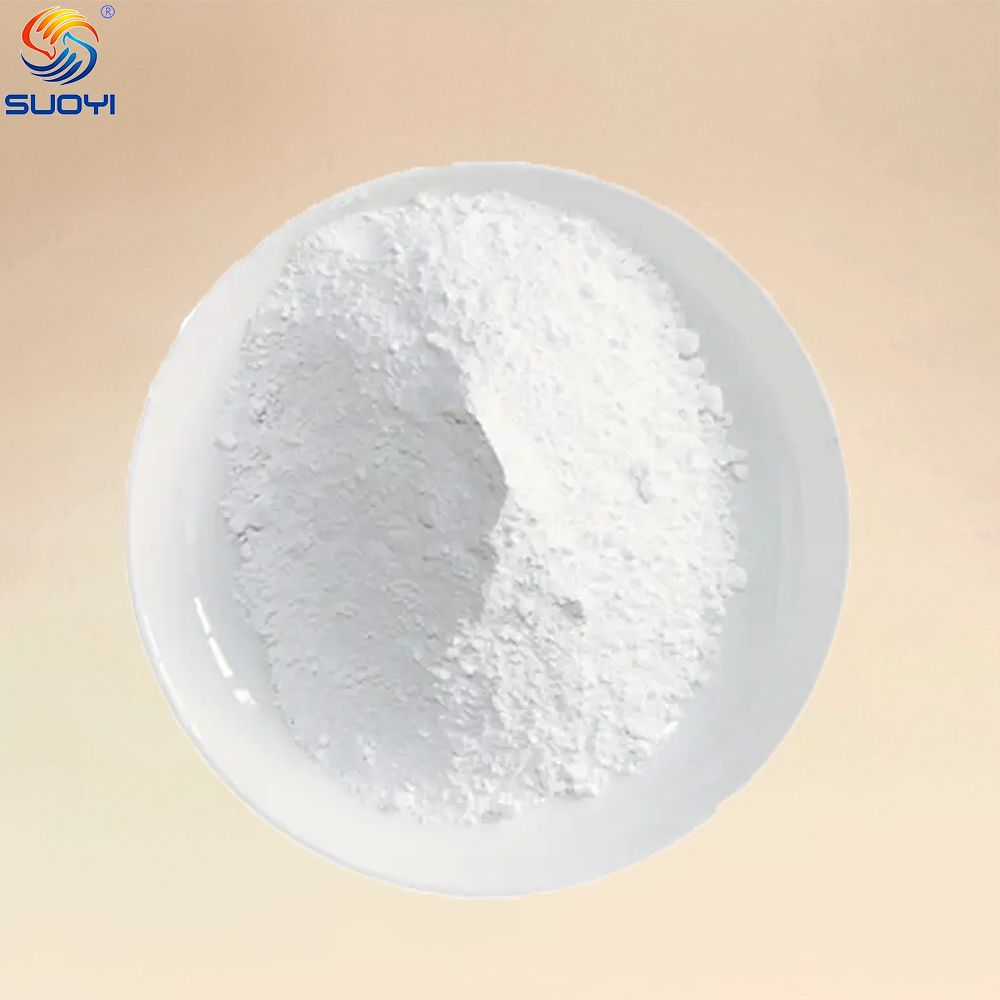

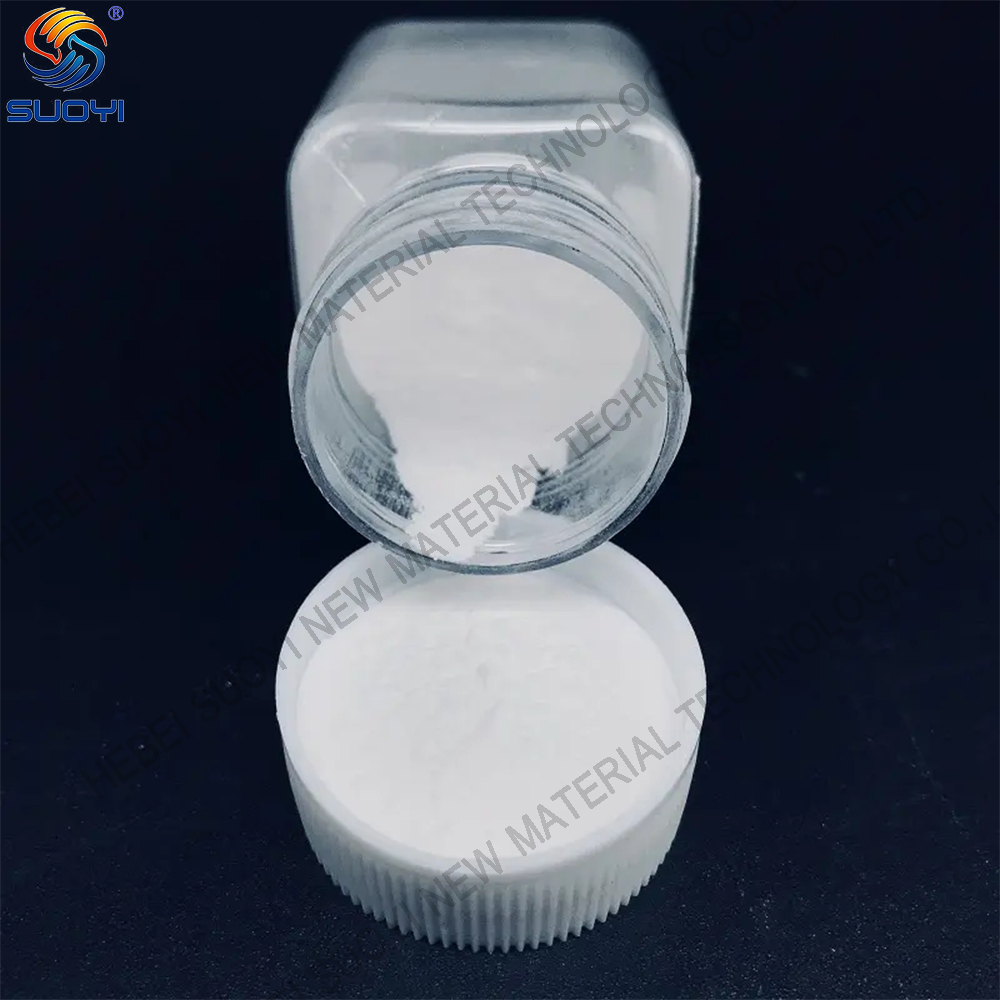

99.4% Spherical barium titanate powder cas 12047-27-7 barium titanate price
- Color:color
- Specification Code:P24357599-01
- Specification Description:99.4%
Barium titanate with best price CAS 12047-27-7

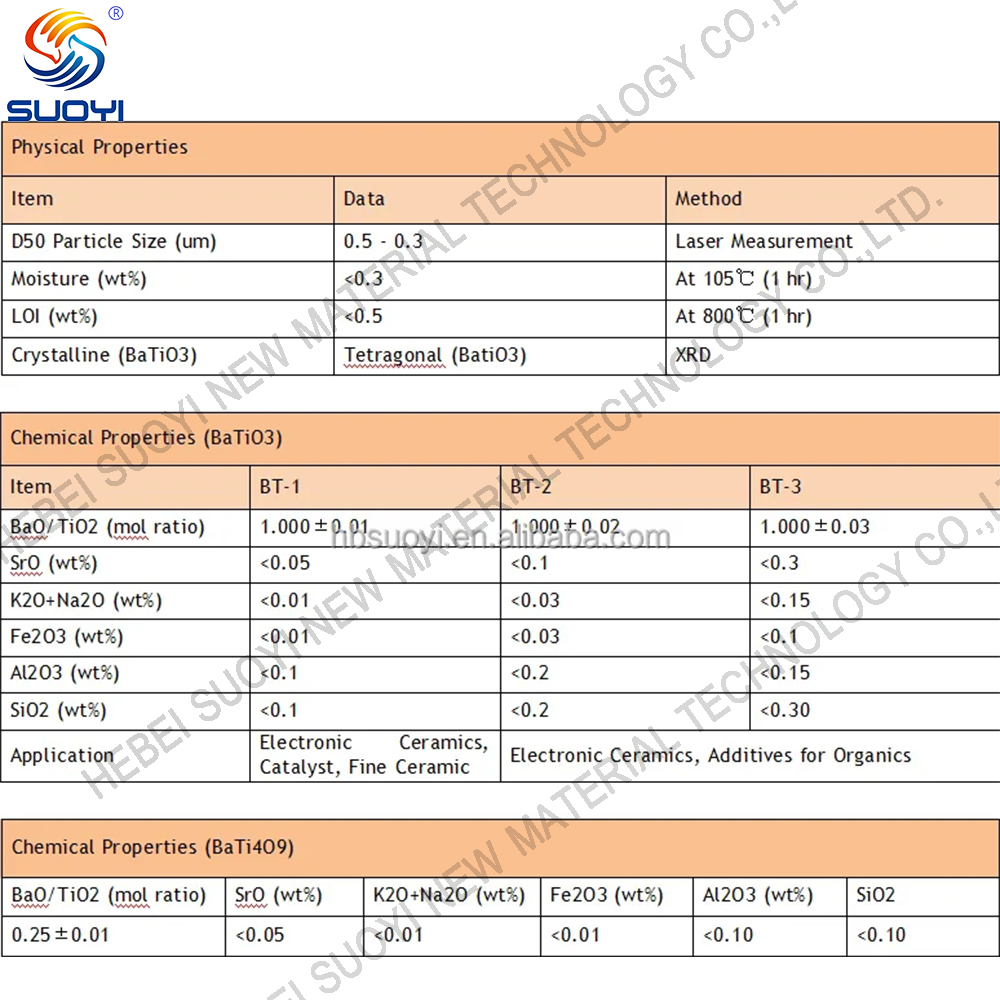

| Barium titanate Basic information | |
| Product Name: | Barium titanate |
| CAS: | 12047-27-7 |
| MF: | BaO3Ti |
| MW: | 233.19 |
| EINECS: | 234-975-0 |
| Mol File: | 12047-27-7.mol |
| Barium titanate Chemical Properties | |
| Melting point | 1625 °C |
| density | 6.08 g/mL at 25 °C(lit.) |
| storage temp. | Storage temperature: no restrictions. |
| solubility | Soluble in alcohols |
| form | powder |
| color | White to gray |
| Specific Gravity | 6.08 |
| PH | 9.6 (20g/l, H2O, 25℃)(slurry) |
| Water Solubility | INSOLUBLE |
| Merck | 141,000 |
| InChIKey | WNKMTAQXMLAYHX-UHFFFAOYSA-N |
| CAS DataBase Reference | 12047-27-7(CAS DataBase Reference) |
| EPA Substance Registry System | Barium titanium oxide (BaTiO3) (12047-27-7) |

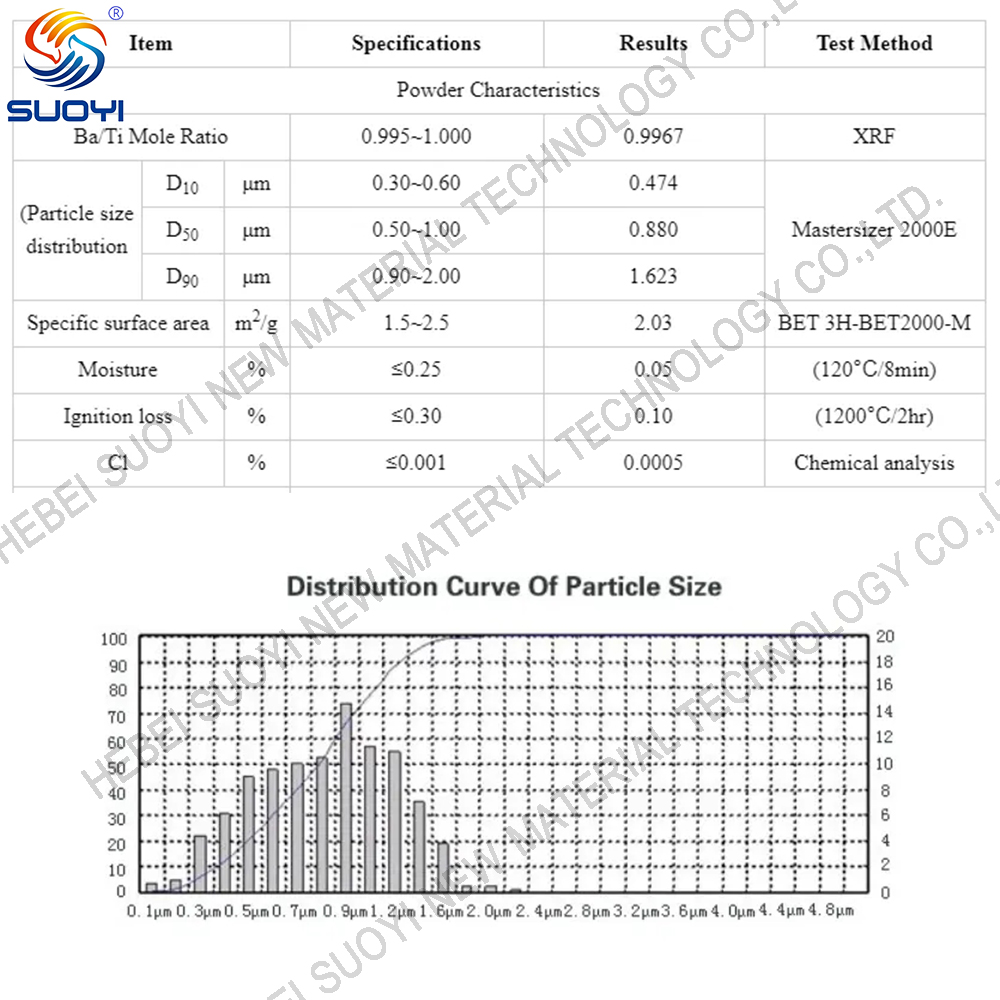

Item | Specifications | Results | Test Method | ||
Powder Characteristics | |||||
Ba/Ti Mole Ratio | 0.995~1.000 | 0.9967 | XRF | ||
(Particle size distribution | D10 | μm | 0.30~0.60 | 0.474 | Mastersizer 2000E |
D50 | μm | 0.50~1.00 | 0.880 | ||
D90 | μm | 0.90~2.00 | 1.623 | ||
Specific surface area | m2/g | 1.5~2.5 | 2.03 | BET 3H-BET2000-M | |
Moisture | % | ≤0.25 | 0.05 | (120°C/8min) | |
Ignition loss | % | ≤0.30 | 0.10 | (1200°C/2hr) | |
Cl | % | ≤0.001 | 0.0005 | Chemical analysis | |
Barium Titanate CAS 12047-27-7

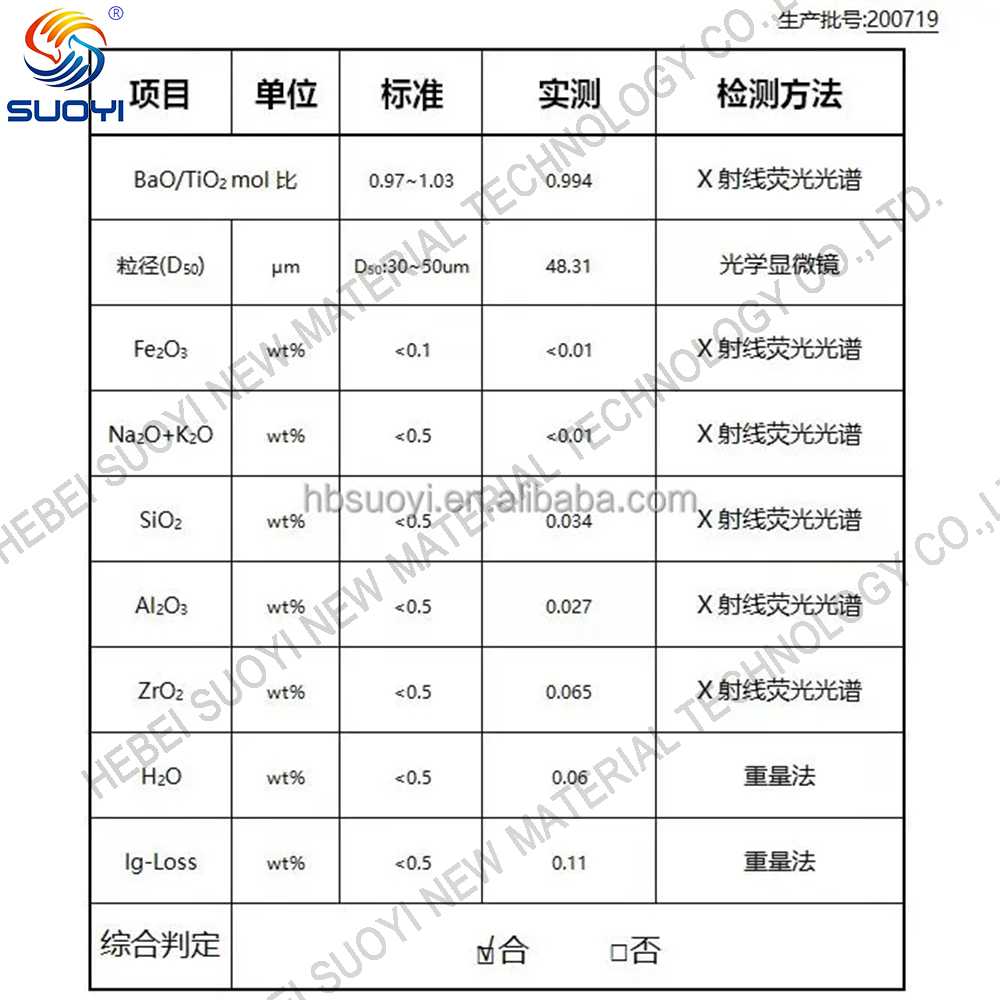

1. Specification of Barium Titanate CAS 12047-27-7
Property (Pure BT) | Unit | Test method | Specification | Result | |
Upper limit | Lower limit | ||||
Moisture Content | % | 8min.at 120℃(MJ33) | 0.25 | 0.00 | 0.10 |
LOI | % | 2hr. at 1200℃(LH30/13) | 0.30 | 0.00 | 0.19 |
D90 | Um | PSD(Mastersizer 2000)IR:2.4 | 2.00 | 1.00 | 1.57 |
D50 | Um | 1.00 | 0.50 | 0.75 | |
D10 | Um | 0.60 | 0.30 | 0.40 | |
Specific Surface Area | m^2/g | BET(3H-BET2000-M) | 2.50 | 1.80 | 1.85 |
A/B ratio (Ba/Ti) | XRF(S8) | 1.0000 | 0.9950 | 0.9961 | |
Conclusion | The results conforms with enterprise standards | ||||
