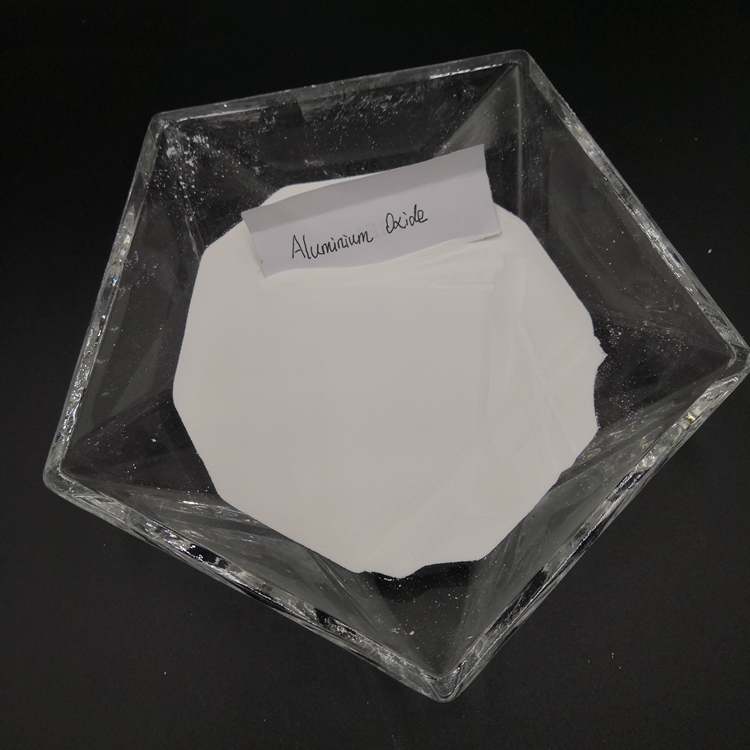

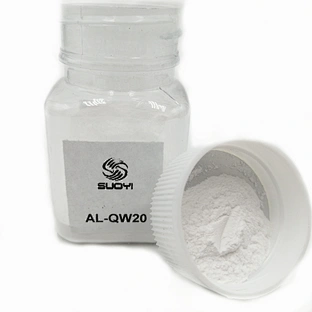

Plasma spray coating material 99.99% spherical aluminum oxide Al2O3

• Melting point:2050 ℃
• Boiling point:2980℃
• Molecular Weight:102
• Specific gravity:2.5-3.95g / cm3
• Classification:ALUMINA
• Grade Standard:Electron Grade
• Grade Standard:Industrial Grade
• Appearance:White powder
• Application:Industrial
• Place of Origin:CN
• Brand Name:SuoYi
• Purity:99%
• Other Names:Alumina
• EINECS No.:215-691-6
• MF:Al2O3
• CAS No.:1344-28-1

Plasma spray coating material 99.99% spherical aluminum oxide Al2O3

Features:

1)High filling: Particle size distribution is reasonable, filling efficiency as resin filler is high, and compound of low viscosity and good fluidity can be made.

2)High thermal conductivity: Filling degree is high. Compared with the thermal conductivity of crystalline silicon, that of mixture is higher.

3)Low wear rate: It appears spherical. It wears less on the mixer and molding tool.

4)Electrical and moisture resistance: There is a very small content of ion impurities, such as Na and Cl, so it has good electrical and moisture resistance.

5)Particle Morphology: Equant diameter sphere, High surface smoothness

 Main Technical Parameters of SY-QW Series Spherical Alumina Filler:

	D50(μm)	Specific Surface Area(m2/g)	Chemical Composition (wt/%)						Bulk Density(g/cm3)	L.O.I. (0-1100)
			SiO2(%)	Fe2O3(%)	T-Na2O(%)	EC(μS/cm)	Na+(ppm)	Cl-(ppm)
QW-03	3±0.5	0.7	≤0.10	≤0.03	≤0.015	≤8	≤8	≤1	1.0	≤0.03
QW-05	5±1	0.6	≤0.10	≤0.03	≤0.015	≤8	≤8	≤1	1.3	≤0.03
QW-10	9±1	0.4	≤0.10	≤0.03	≤0.015	≤8	≤8	≤1	1.6	≤0.03
QW-20	20±1	0.2	≤0.05	≤0.02	≤0.01	≤6	≤6	≤0.5	2.1	≤0.02
QW-30	28±2	0.2	≤0.05	≤0.02	≤0.01	≤5	≤6	≤0.5	2.1	≤0.02
QW-45	40±2	0.2	≤0.05	≤0.02	≤0.01	≤3	≤6	≤0.5	2.2	≤0.02

1)Heat sink: radiating substrate filler, heat sinking oil, phase change film

2)Semiconductor filler

3)Special air abrasive

4)Organosilicon heat sinking adhesive and mixture filler

5)Ceramic filter membrane

6)Coated powder, etc.
